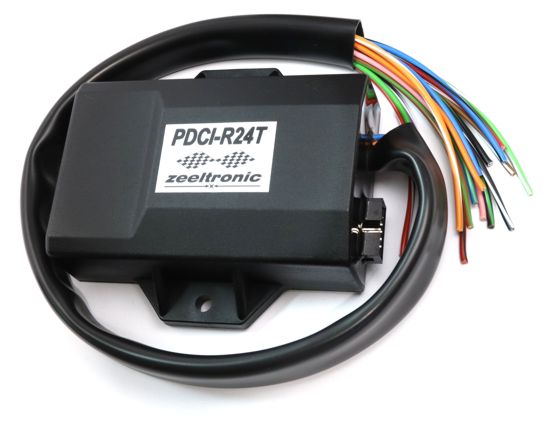

PDCI-R24T
- programmable DC-CD
...programmable with
Handheld
Programmer and
PC
Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 7 Volts
- recommended power supply 12÷15 Volts
- maximum supply voltage 17 Volts
- stand-by current draw < 0.09 Amp
- current draw at 1300 RPM < 0.3 Amp
- current draw at 12000 RPM < 2.5 Amp
- maximum continuous current for shift light and
power jet output 1 Amp
- peak current for shift light and power jet output
5 Amp
- maximum spark energy per channel 80mJ
Features:
- fast power-up (also starts only with condenser)
- full power starting spark energy already at 7Volts
power supply
- one isolated input (pickup)
- two independent ignition coil outputs
- individual advance/retard of each output
- store and load function for two ignition maps
- external switch for changing ignition map while
riding
- TPS input (Throttle Position Sensor)
- 2 power jet outputs
- duty cycle solenoid output (for regulating A/F
ratio on some carburettors)
- soft rev limit (three stage rev limit)
- reduced spark at high revs with closed throttle (TCT
mode)
- tachometer output
- easy and fast programming on the field, via hand
held programmer
- programming while machine running - you can
immediately see effects
- each curve can be set in 4 to 12 curve points
- 3D interpolated ignition map, if TPS selected
- signal delay compensation
- instant monitoring of rev's and angle, via
LCD(hand held programmer)
- fast processing for high accuracy - delays from
1us
- timing calculation for every 1 RPM change (1000,
1002, .. , 9805, 9806, ...)
