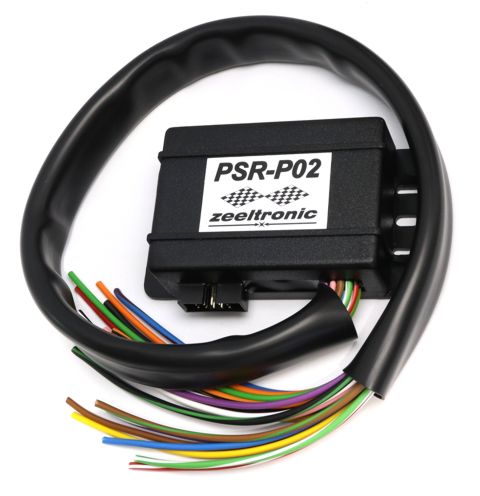

PSR-P02
- programmable CDI for PVL
generator
...programmable with
Handheld
Programmer and
PC
Supported generators:
- PVL 50ohm
stator 1419, 1424
- PVL 171ohm stator 1443
Technical data:
- minimum revs 500 RPM
- maximum revs 20000 RPM
- minimum supply voltage 8 Volts
- maximum supply voltage 16 Volts
- max. supply voltage for 1 minute 35 Volts
- current draw 25 mAmp
- maximum continuous current for shift light output
1 Amp
- peak current for shift light output 5 Amp
Circuit is protected against reverse supply voltage
(wrong connection).
Features:
- CDI charged from hi voltage charging coils
(generator)
- running with PVL and Selettra rotor/stator without
pickups
- store and load function for 2 ignition maps
- external switch for changing ignition map while
riding
- shift light output
- quick shift (shift kill)
- tachometer output
- advance/retard whole ignition curve
- rev limit
- timing compensation curve
- fast processing for high accuracy - delays from
1us
Download:
PSR-P02 wiring diagram
(PVL)
Setting ignition timming for PVL
PSR-P02 programming manual for handheld programmer
ZeelProg PSR-P02
|
