PDCI-MS30 - twin channel programmable DC-CDI

...programmable with PC

PDCI-MS30 is three channel DC/CDI specially designed to run with MSD total loss trigger pickups, or HALL sensors.
It has 2 switchable ignition maps, latching stop, GPO (General Purpose Output). It is programmable with PC.



Technical data:
- minimum revs 100 RPM
- maximum revs 15000 RPM
- minimum supply voltage 9 Volts
- maximum supply voltage 17 Volts
- recommended power supply voltage 12÷15 Volts
- stand by current draw 0,017 Amp
- idle current draw 0,5 Amp
- max current draw 2,7 Amp
- output energy 90mJ



Download:

PDCI-MS30 programming manual for ZeelProg

PDCI-MS30 wiring diagram for MSD pickups

PDCI-MS30 wiring diagram for HALL sensors

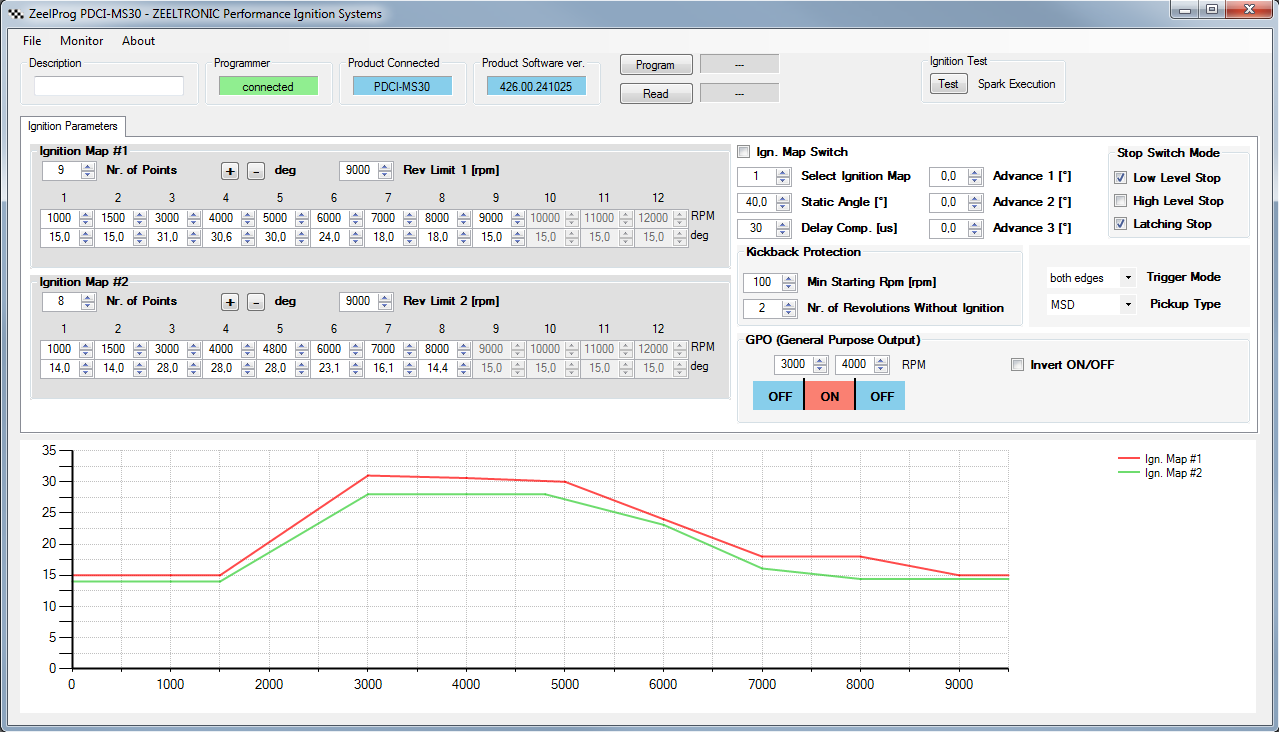

ZeelProg PDCI-MS30
