PIIS-23
- twin channel programmable
inductive ignition ECU

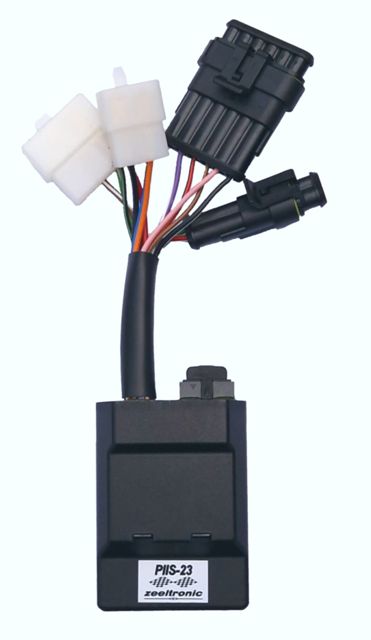

PIIS-23 is twin channel inductive
ignition ECU with 2 switchable ignition maps. It can
be programmed with handheld programmer, or PC-USB
programmer.
Technical data:
- minimum revs 200 RPM
- maximum revs 15000 RPM
- minimumsupply voltage 9 Volts
- maximum supply voltage 17 Volts
- recommended power supply voltage 12 ÷ 15 Volts
- recommended ignition coil resistance 2.2 ÷ 4 ohm
- recommended ignition coil inductance 5 ÷ 7 mH
- dimensions 76 x 55 x 28 mm
Features:
- two inputs for magnetic pickup
- two ignition maps with 20 programmable rpm points
adjustable in 10 rpm and 0.1 deg steps
- ignition map switch input
- individual rev limit for each ignition map
- shift light output
- fuel pump relay output
- rev counter output (1 pulse per revolution, 5 Volt
square wave)
- quick shift input
- programmable with handheld, or PC-USB programmer
- ignition test
- ignition coil test
- ECU makes quick test of ignition coils at power
up. If error is detected then ignition is disabled
Download:
PIIS-23 programming manual for handheld programmer
PIIS-23 programming manual for ZeelProg
PIIS-23
GSX-R750 (85-87)
PIIS-23
GSX-R750 (88-92)
ZeelProg PIIS-23
|
