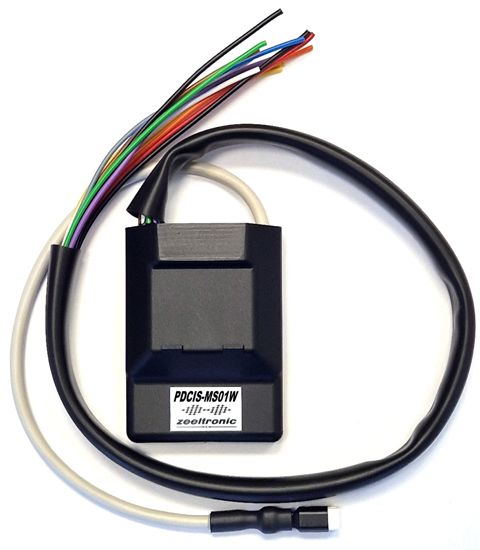

PDCIS-MS01W
- twin channel programmable DC-CDI
...programmable with
PC
PDCIS-MS01 is twin channel DC/CDI specially designed
to run with MSD total loss trigger pickups, or HALL
sensors.
It has 2 switchable ignition maps, latching stop,
two general purpose (GPO) outputs which can be used
for water injection. It
is programmable with PC.
Technical data:
- minimum revs 200 RPM
- maximum revs 10000 RPM
- minimum supply voltage 9 Volts
- maximum supply voltage 17 Volts
- recommended power supply voltage 12÷15 Volts
- stand by current draw 0,017 Amp
- idle current draw 0,35 Amp
- GPO output continuous current (each) 2 Amp
- max current draw (without GPO) 1,5 Amp
- output energy 80mJ
Download:
PDCIS-MS01W programming manual for ZeelProg
PDCIS-MS01W wiring diagram for MSD pickups
PDCIS-MS01W wiring diagram for HALL sensors
ZeelProg PDCIS-MS01W
|
