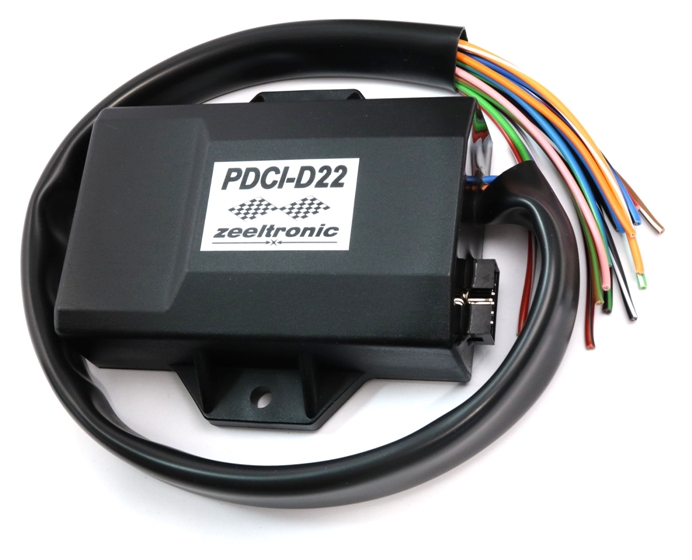

PDCI-D22 - programmable DC-CDI

...programmable with Handheld Programmer and PC

Specially designed for drag racing two cylinder engines.


Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 7 Volts
- recommended power supply voltage 1215 Volts
- maximum supply voltage 17 Volts
- stand-by current draw ~ 0.1 Amp
- current draw at 1300 RPM ~ 0.45 Amp
- current draw at 10000 RPM ~ 2.6 Amp
- maximum continuous current for shift light and power jet output 1 Amp
-
output energy up to 11000 RPM ~ 80mJ
- output energy at 15000 RPM ~ 53mJ



Features:
- fast power-up
- full power starting spark energy already at 7Volts power supply
- 2 isolated inputs for pickups
- 2 independent ignition coil outputs
-
individual advance/retard of each output
- store and load function for two ignition maps
- ignition map change by map switch
- ignition map change by gear change
- shift light output
- power jet output
- gear select output
- quick shift (shift kill)
- rev limit
- launch rev limit
- burn out rev limit
- shift counter
- auto shift mode
- tachometer output
- easy and fast programming on the field, via hand held programmer
- PC-USB programming
- programming while machine running - you can immediately see effects
- each curve can be set from 4 to 12 curve points
- signal delay compensation
- instant monitoring of rev's and angle, via hand held programmer and PC
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
