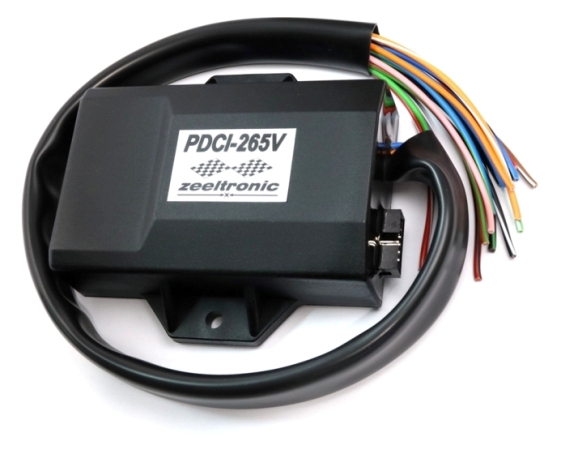

PDCI-265V - twin channel programmable DC-CDI and PV controller

...with programmable spark power!

...programmable with PC

Supported bikes:
- twin cylinder racing engines, with exhaust valve
- 4 cylinder racing engines (wasted spark), with exhaust valve


Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 9 Volts
- maximum supply voltage 17 Volts
- recommended power supply from 12 to 15 Volts
- stand-by current draw  0.05 Amp
- current draw at 1300 RPM  0.4 Amp
- current draw at 12000 RPM  2 Amp
- maximum continuous current for shift light and power jet output 1 Amp
- peak current for shift light and power jet output 5 Amp
- programmable spark energy from idle to 20000 RPM from 16.5 to 55 mJ


Features:
- fast power-up (also starts only with condenser)
- full power starting spark energy already at 9 Volts power supply
- two isolated input (pickup)
- two ignition coil output
- two outputs for additional non programmable DC-CDI
- external switch for changing ignition map while riding
- programmable spark power
- gear sensor input (6 gears...3 gear groups)
- wheel speed sensor input for calculating gears
- two programmable ignition maps
- two programmable power valve maps
- external switch for changing ignition and power valve map while riding
- TPS input (Throttle Position Sensor)
- shift light output
- power jet output...on/off function (TPS and rev dependent)
- duty cycle power jet output...from 0% to 100% (for regulating A/F ratio on some carburettors)
- quick shift...kill time for each gear...smart shift function, with automatic kill time adjustment
- soft rev limit 1
- hard cut rev limit 2 with enable switch input
- reduced number of sparks at high revs with closed throttle (TCT mode)
- tachometer output
- programming while machine running - you can immediately see effects
- signal delay compensation
- programmable power valve actuation
- programmable PV deviation
- programmable max close and max open positions
- self PV test on power-up
- PV error detecting (position sensor failure, servo motor failure)
- easy and fast programming on the field, via PC
- fast processing for high accuracy - delays from 1us
- instant monitoring with PC


Download:

PDCI-265V programming manual for ZeelProg

PDCI-265V wiring_diagram 2-cylinder(speed gear sensor & bigbang)

PDCI-265V wiring diagram 2-cylinder(speed gear sensor)

PDCI-265V wiring diagram wiring (speed gear sensor & DCI-21A)

ZeelProg PDCI-265V
