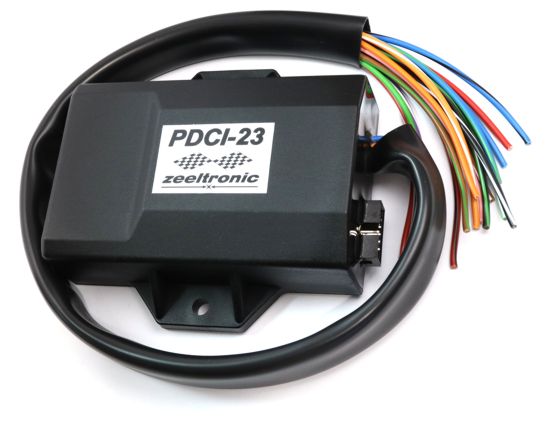

PDCI-23 - programmable DC-CD

...programmable with Handheld Programmer and PC

Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 7 Volts
- recommended power supply 12÷15 Volts
- maximum supply voltage 17 Volts
- stand-by current draw < 0.09 Amp
- current draw at 1300 RPM < 0.3 Amp
- current draw at 12000 RPM < 3 Amp
- maximum continuous current for shift light and power jet output 1 Amp
- peak current for shift light and power jet output 5 Amp
- maximum spark energy per channel 51mJ


Features:
- fast power-up (also starts only with condenser)
- full power starting spark energy already at 7Volts power supply
- two isolated inputs (pickups)
- two independent ignition coil outputs
- individual advance/retard of each output
- store and load function for two ignition maps
- external switch for changing ignition map while riding
- shift light output
- power jet output
- quick shift
- soft rev limit (three stage rev limit)
- tachometer output
- easy and fast programming on the field, via hand held programmer
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 12 curve points
- signal delay compensation
- instant monitoring of rev's and angle, via LCD(hand held programmer)
- fast processing for high accuracy - delays from 1us
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)



Download:

PDCI-23 programming manual for handheld programmer

PDCI-23 programming manual for ZeelProg

wiring diagram PDCI-23

ZeelProg PDCI-23
