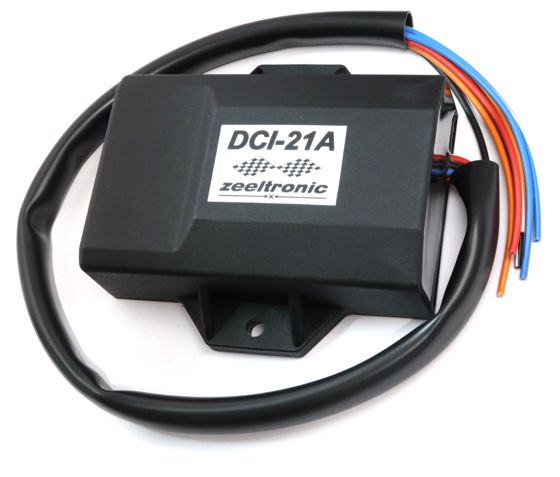

DCI-21A - non programmable two channel DC-CDI with high output energy

Technical data:
- minimum supply voltage    9 Volts
- maximum supply voltage    17 Volts
- recommended power supply voltage    12÷15 Volts
- stand-by current draw    60 mAmp
- idle current draw    0.25 mAmp
- current draw at 12000 RPM    1.75 Amp
- current draw at 18000 RPM    2.56 Amp
- output energy at each output    >50 mJ


wiring diagram DCI-21A
