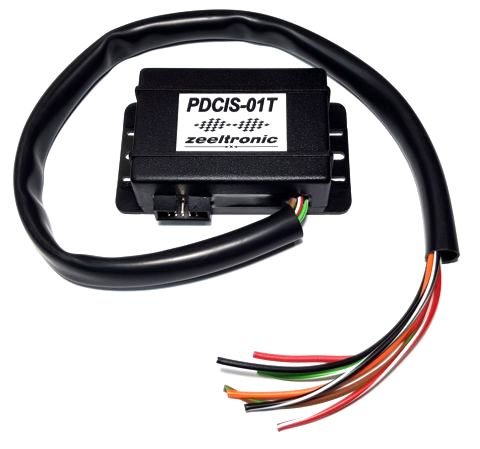

PDCIS-01T - simple single channel programmable DC-CDI

...programmable with Handheld Programmer and PC



Supported bikes:
- single cylinder, or twin wasted spark engines


Technical data:
- minimum revs 200RPM
- maximum revs 20000RPM
- minimum supply voltage 7 Volts
- maximum supply voltage 17 Volts
- recommended power supply from 12 to 15Volts
- stand-by current draw < 0.09 Amp
- current draw at 1300RPM < 0.15 Amp
- current draw at 12000RPM < 1 Amp
- constant spark energy from idle to 11000RPM >51mJ
- spark energy at 15000RPM >38mJ
- spark energy at 20000RPM >30mJ

Circuit is protected against reverse supply voltage (wrong connection).

Features:
- fast power-up (also starts only with condenser)
- full power starting spark energy already at 7Volts power supply
- one isolated input (pickup)
- one ignition coil output
- external switch for changing ignition map while riding
- soft rev limit (three stage rev limit)
- easy and fast programming on the field, via hand held programmer
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 12 curve points
- signal delay compensation
- instant monitoring of rev's and angle, via LCD(hand held programmer)
- fast processing for high accuracy - delays from 1us
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)


Download:

PDCIS-01T programming manual for handheld programmer

PDCIS-01T programming manual for ZeelProg

PDCIS-01T wiring diagram

ZeelProg PDCIS-01T (32bit)

ZeelProg PDCIS-01T (64bit)
