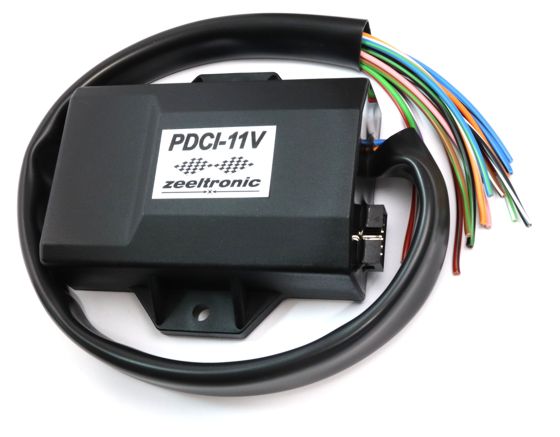

PDCI-11V - single channel programmable CDI and PV controller

...programmable with Handheld Programmer and PC



Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 7 Volts
- recommended power supply 1215 Volts
- maximum supply voltage 17 Volts
- max idle current draw 50 mAmp
- maximum continuous current for shift light and power jet output 1 Amp
- peak current for shift light and power jet output 5 Amp
- constant spark energy from idle to 20000 RPM >65mJ

Avoid reverse power supply connection...circuit can handle reverse power supply only for short time.

Features:
- one channel isolated input (pickup)
- store and load function for two ignition curves
- TPS input (Throttle Position Sensor)
- shift light output
- 2 power jet outputs
- quick shift (shift kill)
- soft rev limit (three stage rev limit)
- external switch for changing ignition map while riding
- tachometer output
- easy and fast programming on the field, via hand held programmer
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 12 curve points
- 3D interpolated ignition map, if TPS selected
- signal delay compensation
- instant monitoring of rev's and angle, via LCD(hand held programmer)
- programmable power valve actuation
- store and load function for 5 PV curves
- external switch for changing PV map while riding
- programmable PV deviation
- programmable max close and max open positions
- self PV test on power-up
- PV error detecting (position sensor failure, servo motor failure)
- fast processing for high accuracy - delays from 1us
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)


Download:

PDCI-11V programming manual for handheld programmer

PDCI-11V(T) programming manual for ZeelProg

wiring diagram PDCI-11V

ZeelProg PDCI-11V(T)

ZeelProg PDCI-11V(T) (64bit)
