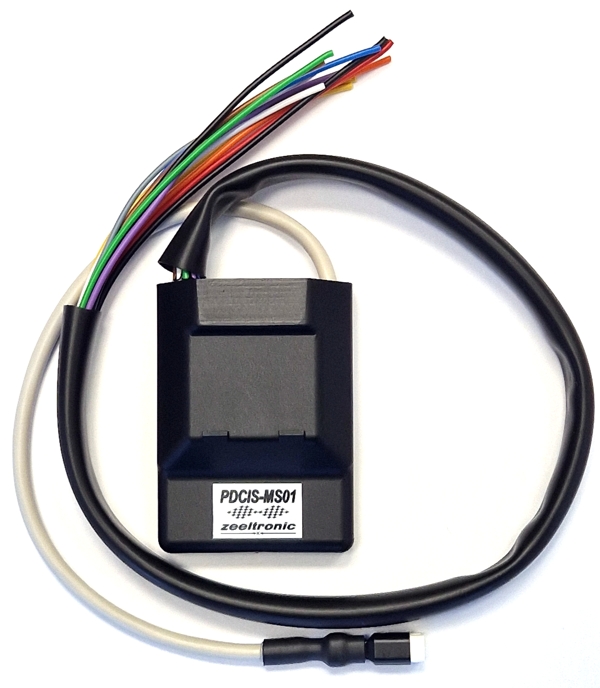

PDCIS-MS01 - twin channel programmable DC-CDI

...programmable with PC

PDCIS-MS01 is twin channel DC/CDI specially designed to run with MSD total loss trigger pickups, or HALL sensors.
It has 2 switchable ignition maps, latching stop. It is programmable with PC.



Technical data:
- minimum revs 200 RPM
- maximum revs 10000 RPM
- minimum supply voltage 9 Volts
- maximum supply voltage 17 Volts
- recommended power supply voltage 1215 Volts
- stand by current draw 0,017 Amp
- idle current draw 0,35 Amp
- max current draw 1,5 Amp
- output energy 80mJ



Download:

PDCIS-MS01 programming manual for ZeelProg

PDCIS-MS01 wiring diagram for MSD pickups

PDCIS-MS01 wiring diagram for HALL sensors

ZeelProg PDCIS-MS01
