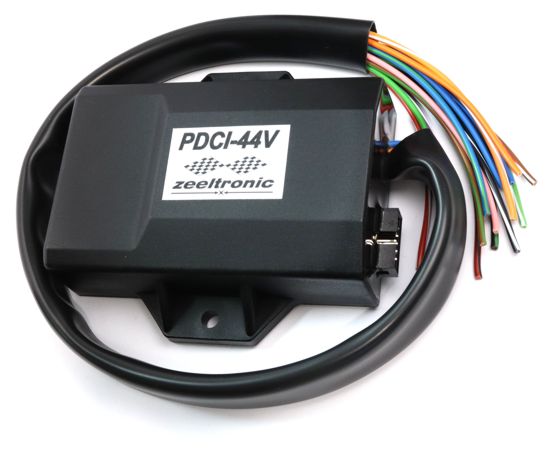

PDCI-44V - programmable DC-CDI and PV controller

...programmable with Handheld Programmer and PC

- programmable CDI for 4 cylinder engines, with exhaust valve


Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 7 Volts
- maximum supply voltage 17 Volts
- normal operating voltage 12 15 Volts
- stand-by current draw < 0.09 Amp
- current draw at 1300 RPM < 0.5 Amp
- current draw at 12000 RPM ~ 3 Amp
- maximum continuous current for shift light and power jet output 1 Amp
- peak current for shift light and power jet output 5 Amp
- constant spark energy from idle to 14000 RPM >35mJ

Avoid reverse power supply connection...circuit can handle reverse power supply only for short time.

Features:
- fast power-up
- full power starting spark energy already at 7Volts power supply
- two isolated input (pickup)
- four independent ignition coil outputs
- individual advance/retard of each ignition coil output
- store and load function for two ignition maps
- external switch for changing ignition map while riding
- TPS input (Throttle Position Sensor)
- shift light output
- 2 power jet outputs
- duty cycle solenoid output (for regulating A/F ratio on some carburettors)
- quick shift (shift kill)
- soft rev limit (three stage rev limit)
- reduced spark at high revs with closed throttle (TCT mode)
- tachometer output
- easy and fast programming on the field, via hand held programmer
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 12 curve points
- 3D interpolated ignition map, if TPS selected
- signal delay compensation
- instant monitoring of rev's and angle, via LCD(hand held programmer)
- programmable power valve actuation
- store and load function for 5 PV curves
- external switch for changing PV curve while riding
- programmable PV deviation
- programmable max close and max open positions
- self PV test on power-up
- PV error detecting (position sensor failure, servo motor failure)
- fast processing for high accuracy - delays from 1us
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)


Download:

PDCI-44V programming manual for handheld programmer

PDCI-44V programming manual for ZeelProg

PDCI-44V wiring diagram

ZeelProg PDCI-44V

ZeelProg PDCI-44V (64bit)
