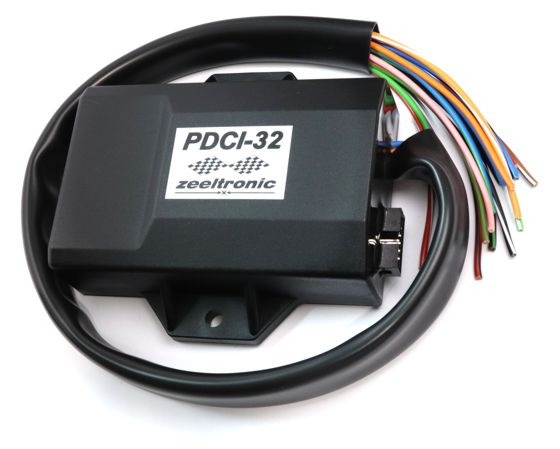

PDCI-32 - 3 channel programmable DC-CDI specially designed for drag racing

...programmable with Handheld Programmer and PC

Technical data:
- minimum revs 200RPM
- maximum revs 20000RPM
- minimum supply voltage 7Volts
- recommended power supply 1215 Volts
- maximum supply voltage 17Volts
- stand-by current draw ~0.09 Amp
- current draw at 1300 RPM ~0.75 Amp
- current draw at 10000 RPM ~3.5 Amp
- maximum continuous current for shift light and power jet output 1Amp
- peak current for shift light and power jet output 5Amp

- spark energy at 9000RPM ~69mJ
- spark energy at 12000RPM ~44mJ


Features:
- fast power-up
- full power starting spark energy already at 7Volts power supply
- 3 isolated inputs for pickups
- 3 independent ignition coil outputs
- individual advance/retard of each output
- store and load function for two ignition maps
- external switch for changing ignition map while riding
- ignition map change by map switch
- ignition map change by gear change

- shift light output
- power jet output
- gear select output
- quick shift (shift kill)
- rev limit
- launch rev limit
- burn out rev limit
-
shift counter
- auto shift mode

- tachometer output
- easy and fast programming on the field, via hand held programmer
- PC-USB programming
- programming while machine running - you can immediately see effects


Download:

PDCI-32 programming manual for ZeelProg

wiring diagram PDCI-32

ZeelProg PDCI-32
