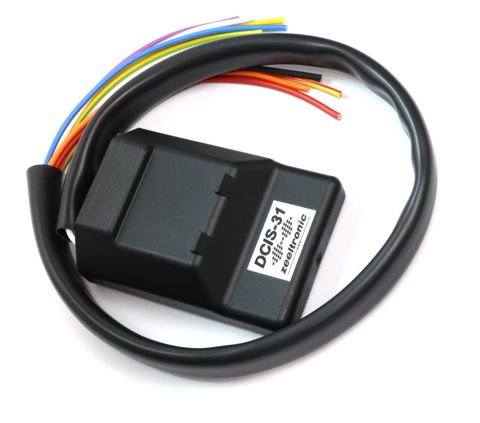

DCIS-31 - non programmable three channel DC-CDI with compact design

Technical data:
- minimum supply voltage    9 Volts
- maximum supply voltage    17 Volts
- recommended power supply voltage    1215 Volts
- stand-by current draw    0.16 Amp
- idle current draw    0.30 mAmp
- maximum current draw    1.20 Amp
- output energy at 5000 RPM    3x36 mJ
- output energy at 7000RPM    3x25 mJ



wiring diagram DCIS-31
