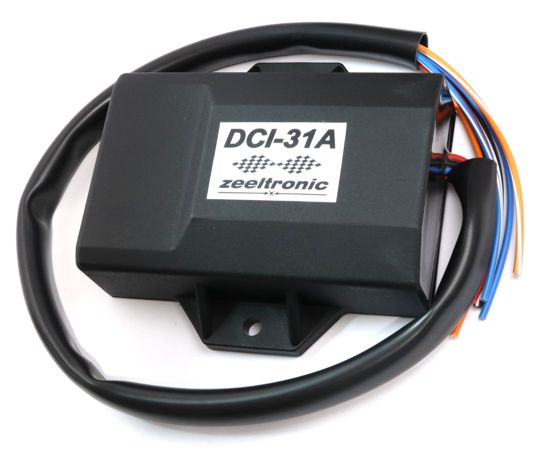

DCI-31A - non programmable three channel DC-CDI with high output energy

Technical data:
- minimum supply voltage    9 Volts
- maximum supply voltage    17 Volts
- recommended power supply voltage    1215 Volts
- stand-by current draw    0.16 Amp
- idle current draw    0.30 mAmp
- current draw at 10000 RPM    1.80 Amp
- current draw at 14000 RPM    2.50 Amp
- output energy at each output    >40 mJ



wiring diagram DCI-31A
